30 W all-in-one solar street light · 40–120 W LED · LiFePO4 192 Wh (LS-A30)

Overview

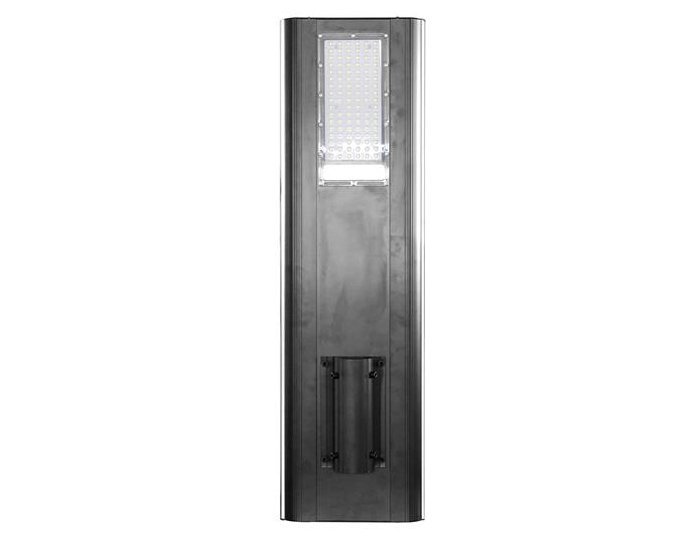

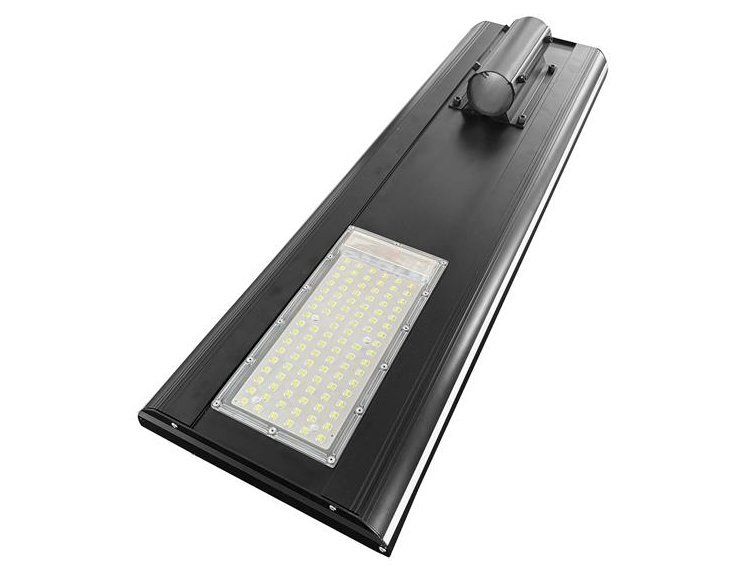

The LS-A30 30 W all-in-one solar street light is the smallest stand-alone outdoor luminaire of the range: a 515 × 265 × 55 mm housing with a compact panel, a LiFePO4 3.2 V 60 Ah battery (192 Wh), IP65, and a choice of 40 to 120 W nominal LED module, for 3 to 4 m poles spaced 10 to 15 m apart. It lights a garden path, a gate, a small car park or the surroundings of a farm building in Morocco (indicative class P4–P6, NM EN 13201). Autonomy up to 12 h per night with 3–5 days of reserve at the default profile; price for Morocco on request (quote via WhatsApp).

How is it sized? The "30" class names the compact format; the exact peak panel power, the flux in lumens and the weight are given on request, because they depend on the LED module option chosen (40, 60, 80 or 120 W nominal). As across the range, the nominal power is not the average draw: the MPPT controller delivers full flux on PIR-detected movement and lowers the flux in the middle of the night; on a small panel, that profile is what carries the December night. The per-10 Wp arithmetic is in "Autonomy in the Moroccan climate".

The die-cast aluminium housing operates from −20 °C to +65 °C and mounts on a Ø 60 mm spigot, on a light 3–4 m pole, a wall bracket or a gate pillar. IP66 coastal version with marine-grade coating on request for seaside villas; built-in, replaceable LiFePO4 battery.

Features

• Compact 515 × 265 × 55 mm format for a 3–4 m pole, bracket or pillar
• Built-in compact panel; peak power given on request per LED option
• LiFePO4 3.2 V 60 Ah battery (192 Wh), built in and replaceable
• Choice of 40 to 120 W nominal LED module, 180–220 lm/W
• MPPT controller, PIR sensor, dusk-to-dawn sensor, IR remote
• Programmable time and dimming profile, full flux on movement
• Die-cast aluminium housing, sand-grey powder coat, −20 °C to +65 °C
• IP65 as standard; IP66 coastal version with marine-grade coating on request

Applications

• Garden paths of villas and residences
• Gates, entrances and farm yards
• Small car parks of shops, mosques or clinics
• Surroundings of sheepfolds, sheds and pumping stations
• Walkways of campsites and rural guesthouses
• Village squares and school-transport stops

Autonomy in the Moroccan climate

Sized for December: in Casablanca a flat panel receives 2.99 kWh/m²/day (PVGIS-SARAH2 2005-2020, JRC); with a system efficiency of 0.72 (engineering assumption), each 10 Wp of panel harvests 10 × 2.99 × 0.72 ≈ 22 Wh per day in Casablanca and 10 × 3.81 × 0.72 ≈ 27 Wh in Ouarzazate. The night of 21 December lasts ≈ 14.1 h in Casablanca (astronomical computation): each 10 Wp therefore funds an average of about 1.5 W over the night. That is why the LS-A30 is reserved for paths, gates and small car parks, where the PIR sensor does most of the work: full flux on movement, reduced flux the rest of the night.

The 192 Wh battery, the same as the LS-A60's, is generous for this format: it absorbs overcast days and allows "up to 12 h per night, 3–5 days of reserve at the default profile". For continuous lighting or a trafficked lane, step up to the LS-A60 (60 Wp, ≈ 6,000 lm). Autonomy depends on irradiation (sized for December) and on the dimming profile; the peak power chosen on the quotation fixes the final calculation.

• Heat: operating range −20 °C to +65 °C; according to a study published in 2024, a LiFePO4 cell loses ≈ 23 % of its cycle life at 45 °C compared with 25 °C; replaceable battery.
• Coast: IP66 marine-coated version on request for seaside villas and residences; humidity ≈ 82 % all year in Casablanca.
• Dust: flat panel, cleaning advised after each chergui episode.

Compliance and tenders

The LS-A30 is designed to IEC 60598-1 and IEC 60598-2-3, IEC 62717 (LED modules), IEC 60529 (IP65) and IEC 62133-2 (LiFePO4 battery). NM 06.8.001 file in progress for the all-in-one range; Cم marking (law 24-09, orders 2573-14 and 2574-14) with a declaration of conformity and an Arabic manual.

The pole is Moroccan-made (25 % safeguard duty on imported poles, HS 7308.90.10); the customs classification of the luminaire is confirmed by our customs broker. For a commune, farm or residents' association purchase order we supply the FR/EN datasheet of the chosen LED option, IES/LDT files (indicative class P4–P6 for a path or a small square), the drawing of a 3–4 m pole and the EN/NM correspondence table.

• IEC 60598-1 · IEC 60598-2-3 · IEC 62717 · IEC 60529 (IP65) · IEC 62133-2 (LiFePO4)
• NM 06.8.001: file in progress; Cم marking with declaration of conformity
• IES/LDT files, FR/EN datasheet, Arabic manual, 3–4 m pole drawing: on request
• Customs classification confirmed by our customs broker; Moroccan-made pole
