80 W all-in-one solar street light · 8,000 lm · 150 W LED (LS-A80)

Overview

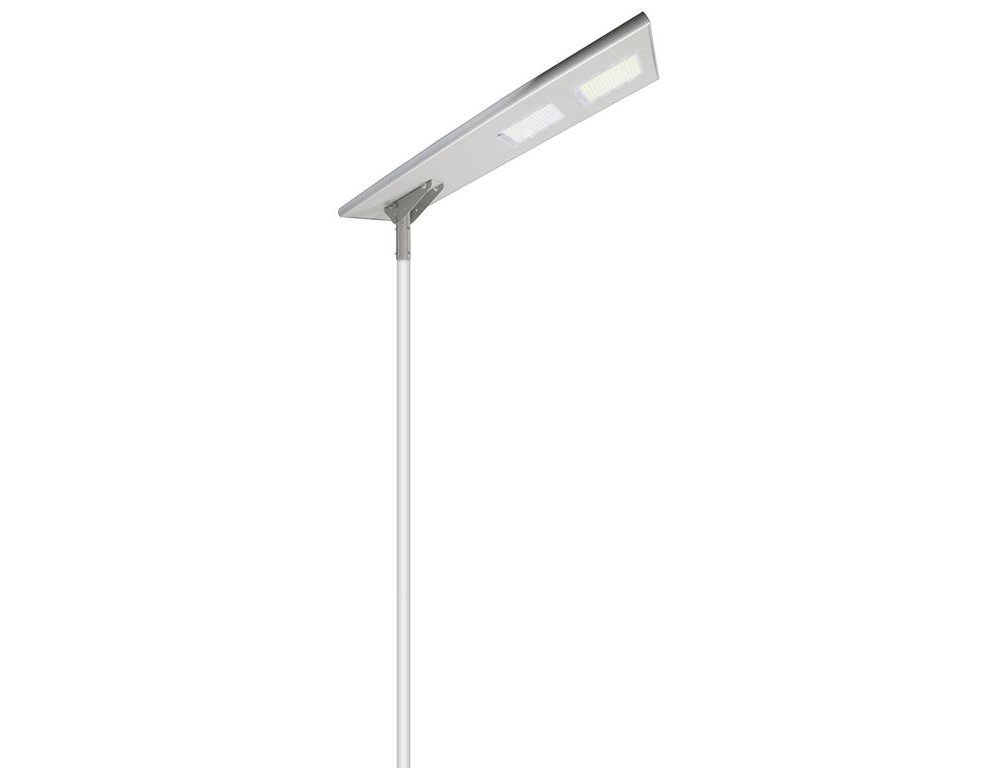

The LS-A80 80 W all-in-one solar street light is a stand-alone outdoor luminaire with a 150 W nominal LED module (≈ 8,000 lm), an 80 Wp monocrystalline panel, a LiFePO4 3.2 V 80 Ah battery (256 Wh) and IP65 protection, for 6 m poles spaced 20 to 25 m apart. It is the model for communal roads, main streets of residential estates and industrial-zone lanes in Morocco (indicative class P2–P3, NM EN 13201). A 90 Wp polycrystalline variant with a 90 Ah battery exists for northern sites. Autonomy up to 12 h per night with 3–5 days of reserve at the default profile; price for Morocco on request (quote via WhatsApp).

How is it sized? The four numbers: 80 Wp, 256 Wh, 150 W LED nominal, ≈ 8,000 lm. The module's nominal power is not the average draw: the MPPT controller runs a dimming profile with full flux early in the evening and on movement (PIR), then reduced flux in the middle of the night, so the average over 12 h stays well below 150 W. Requests phrased as "150 W solar street light" or "200 W" map to the LS-A80 when compared in lumens; the arithmetic is in "Autonomy in the Moroccan climate".

The die-cast aluminium housing measures 1,035 × 430 × 55 mm and weighs 13.4 kg (1,175 mm and 14.5 kg for the 90 Wp version), operating from −20 °C to +65 °C. IP66 coastal version with marine-grade coating for Casablanca, Mohammedia, El Jadida, Rabat-Salé and Tangier; salt-spray test report on request. Built-in, replaceable LiFePO4 battery; on the hottest inland sites, schedule a battery check after each summer.

Features

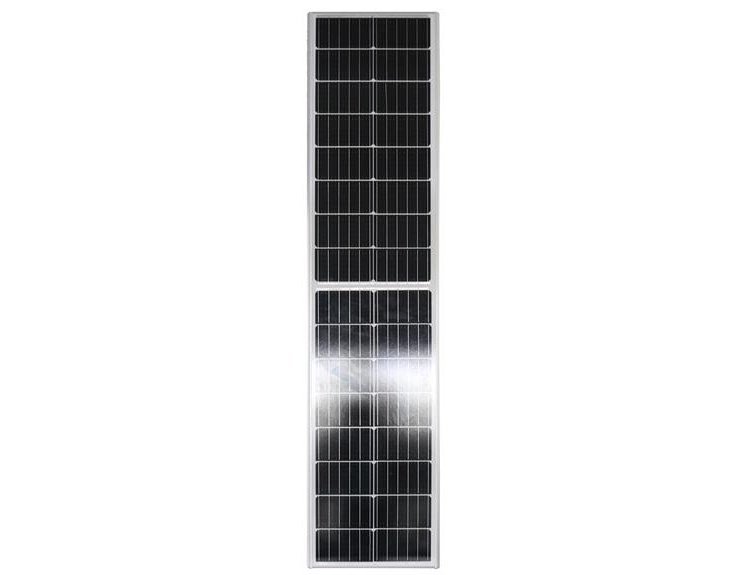

• 80 Wp monocrystalline panel (90 Wp polycrystalline variant with 90 Ah battery)
• LiFePO4 3.2 V 80 Ah battery (256 Wh), built in and replaceable
• 150 W nominal LED module, 150 × 5054 SMD, 180–220 lm/W, ≈ 8,000 lm
• MPPT controller, PIR sensor, dusk-to-dawn sensor, IR remote
• Programmable time and dimming profile to carry the December night
• 70° × 140° asymmetric distribution for a 6 m pole and 20–25 m spacing
• Die-cast aluminium housing, sand-grey powder coat, −20 °C to +65 °C
• IP65 as standard; IP66 coastal version with marine-grade coating on request

Applications

• Communal roads and streets of emerging rural centres
• Main streets of residential estates and gated communities
• Industrial-zone lanes and secondary logistics platforms
• Car parks of factories, hotels or shopping centres
• Village avenues and weekly-souk access roads
• Farm tracks and surroundings of agricultural sheds

Autonomy in the Moroccan climate

Sized for December: in Casablanca a flat panel receives 2.99 kWh/m²/day (PVGIS-SARAH2 2005-2020, JRC). With a system efficiency of 0.72 (engineering assumption), the LS-A80 harvests 80 × 2.99 × 0.72 ≈ 172 Wh per day; in Rabat (2.85) ≈ 164 Wh; in Ouarzazate (3.81) ≈ 219 Wh. The night of 21 December lasts ≈ 14.1 h in Casablanca and Rabat (astronomical computation): 172 Wh spread over the night give an average of about 12 W, or 8 % of the LED module's 150 W nominal.

The gap between 150 W nominal and 12 W average is the controller's job: full flux (≈ 8,000 lm) early in the evening and on PIR-detected movement, reduced flux in the middle of the night. The 256 Wh battery absorbs overcast days, hence "up to 12 h per night, 3–5 days of reserve at the default profile". In June (7.51 kWh/m²/day) the harvest reaches ≈ 433 Wh for a 9.4 to 10.1 h night. Autonomy depends on irradiation (sized for December) and on the dimming profile; for Tangier (2.58 kWh/m²/day flat), the 90 Wp / 90 Ah variant or the LS-S80 split kit with tilted panel are the better choice.

• Heat: operating range −20 °C to +65 °C; according to a study published in 2024, a LiFePO4 cell loses ≈ 23 % of its cycle life at 45 °C compared with 25 °C. Replaceable battery; a check after each summer is advised in Marrakech, Fez and Ouarzazate.
• Coast: humidity ≈ 82 % all year in Casablanca; IP66 marine-coated version in C4–C5 zones, stainless fixings recommended.
• Dust: clean the panel after each chergui episode; the PIR profile keeps a safety level of light even after several overcast days.

Compliance and tenders

The LS-A80 is designed to IEC 60598-1 and IEC 60598-2-3, IEC 62717 (LED modules), IEC 60529 (IP65) and IEC 62133-2 (LiFePO4 battery). NM 06.8.001 file in progress; the standard covers all-in-one modules on new or existing poles, requires ≥ 130 lm/W, 0–100 % dimming with astronomical clock and a 16 h autonomy test at ≥ 40 % flux at 25 °C. Cم marking (law 24-09, orders 2573-14 and 2574-14) with a declaration of conformity and an Arabic manual.

The pole is Moroccan-made (25 % safeguard duty on imported poles, HS 7308.90.10); the customs classification of the luminaire is confirmed by our customs broker. For a commune or developer specification we supply the FR/EN datasheet, IES/LDT files for the NM EN 13201 study (indicative class P2–P3 for a communal road or an estate main street), the 6 m LS-P6 pole drawing and the EN/NM correspondence table.

• IEC 60598-1 · IEC 60598-2-3 · IEC 62717 · IEC 60529 (IP65) · IEC 62133-2 (LiFePO4)
• NM 06.8.001: file in progress; Cم marking with declaration of conformity
• IES/LDT files, FR/EN datasheet, Arabic manual, LS-P6 pole drawing: on request
• Customs classification confirmed by our customs broker; Moroccan-made pole
