50 W compact all-in-one solar street light · 5,000 lm · 100 W LED (LS-A50C)

Overview

The LS-A50C 50 W compact all-in-one solar street light is a stand-alone outdoor luminaire with a 100 W nominal LED module (≈ 5,000 lm), a 50 Wp class panel, a LiFePO4 3.2 V 50 Ah battery (160 Wh) and IP65 protection, in a slim 900 × 240 × 55 mm housing weighing 5.4 kg, for 4 to 5 m poles spaced 12 to 18 m apart. Its slim line and blue accent strip make it the model for residential paths, parks, campuses and hotels in Morocco (indicative class P3–P5, NM EN 13201). Autonomy up to 12 h per night with 3–5 days of reserve at the default profile; price for Morocco on request (quote via WhatsApp).

How is it sized? The four numbers: 50 Wp, 160 Wh, 100 W LED nominal (100 × 5054 SMD), ≈ 5,000 lm. The nominal power is not the average draw: the MPPT controller delivers full flux on PIR-detected movement and early in the evening, then lowers the flux in the middle of the night; over 12 h the average stays far below 100 W. On a hotel or residence path, the blue accent strip keeps a visual marker between two passages; the arithmetic is in "Autonomy in the Moroccan climate".

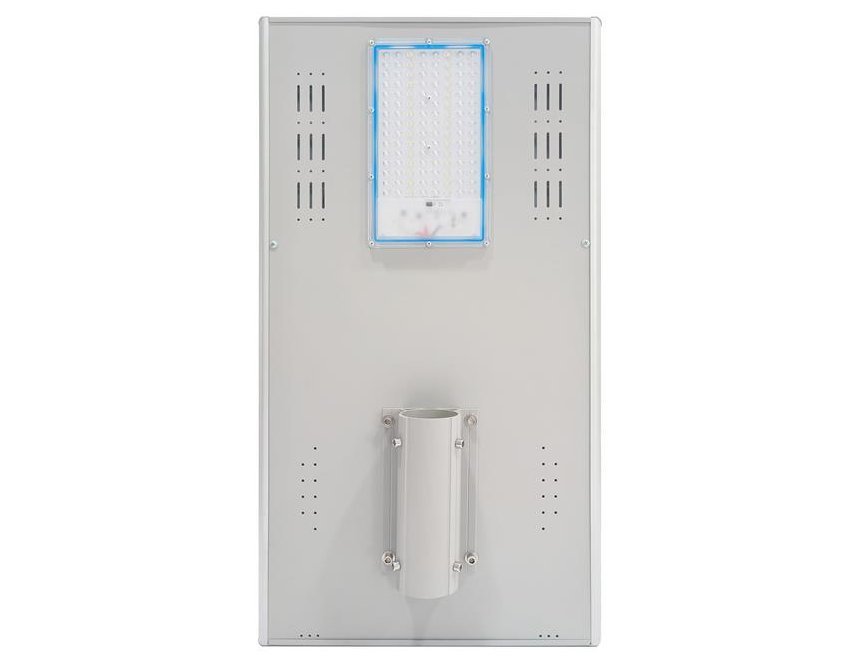

The die-cast aluminium housing operates from −20 °C to +65 °C and mounts on a Ø 60 mm spigot; at 5.4 kg it goes on light 4–5 m poles or wall brackets without a lift. IP66 coastal version with marine-grade coating for resorts in Taghazout, Saïdia, Mazagan or on the Casablanca Corniche; salt-spray test report on request. Built-in, replaceable LiFePO4 battery.

Features

• Compact 900 × 240 × 55 mm format, 5.4 kg: fitted without a lift on a 4–5 m pole
• 50 Wp class panel built into the slim housing
• LiFePO4 3.2 V 50 Ah battery (160 Wh), built in and replaceable
• 100 W nominal LED module, 100 × 5054 SMD, 180–220 lm/W, ≈ 5,000 lm
• Blue accent light strip: decorative visual marker between two passages
• MPPT controller, PIR sensor, dusk-to-dawn sensor, IR remote
• 70° × 140° asymmetric distribution, 3000 K CCT for hotel paths
• IP65 as standard; IP66 coastal version with marine-grade coating on request

Applications

• Paths and car parks of hotels, riads and resorts
• Walkways of gated communities and residents' association common areas
• Parks, public gardens and promenades
• Campuses, schools and training centres
• Paths of campsites and sports clubs
• Courtyards of clinics and retirement homes

Autonomy in the Moroccan climate

Sized for December: in Casablanca a flat panel receives 2.99 kWh/m²/day (PVGIS-SARAH2 2005-2020, JRC). With a system efficiency of 0.72 (engineering assumption), the LS-A50C harvests 50 × 2.99 × 0.72 ≈ 108 Wh per day; in Marrakech (3.46) ≈ 125 Wh; in Agadir (3.62) ≈ 130 Wh. The night of 21 December lasts ≈ 14.1 h in Casablanca and ≈ 13.8 h in Agadir (astronomical computation): 108 Wh over the night are an average of about 8 W, or 8 % of the LED module's 100 W nominal.

On a hotel or residence path, that is exactly the useful profile: full flux (≈ 5,000 lm) when a guest or resident passes, reduced flux and blue accent strip between two passages. The 160 Wh battery absorbs overcast days, hence "up to 12 h per night, 3–5 days of reserve at the default profile". In June (7.51 kWh/m²/day) the harvest reaches ≈ 270 Wh for a 9.4 to 10.1 h night. Autonomy depends on irradiation (sized for December) and on the dimming profile.

• Heat: operating range −20 °C to +65 °C; according to a study published in 2024, a LiFePO4 cell loses ≈ 23 % of its cycle life at 45 °C compared with 25 °C; in Marrakech a battery check after each summer is advised.
• Coast and resorts: IP66 marine-coated version for Taghazout, the Casablanca Corniche, Mazagan or Saïdia; humidity ≈ 82 % all year in Casablanca.
• Dust: cleaning the panel after each chergui episode restores the 108 Wh harvest.

Compliance and tenders

The LS-A50C is designed to IEC 60598-1 and IEC 60598-2-3, IEC 62717 (LED modules), IEC 60529 (IP65) and IEC 62133-2 (LiFePO4 battery). NM 06.8.001 file in progress for the all-in-one range; Cم marking (law 24-09, orders 2573-14 and 2574-14) with a declaration of conformity and an Arabic manual.

The pole is Moroccan-made (25 % safeguard duty on imported poles, HS 7308.90.10); the customs classification of the luminaire is confirmed by our customs broker. For a hotel, developer or residents' association specification we supply the FR/EN datasheet, IES/LDT files for the NM EN 13201 study (indicative class P3–P5 for a pedestrian path or a residence car park), the drawing of a 4–5 m pole and the EN/NM correspondence table.

• IEC 60598-1 · IEC 60598-2-3 · IEC 62717 · IEC 60529 (IP65) · IEC 62133-2 (LiFePO4)
• NM 06.8.001: file in progress; Cم marking with declaration of conformity
• IES/LDT files, FR/EN datasheet, Arabic manual, 4–5 m pole drawing: on request
• Customs classification confirmed by our customs broker; Moroccan-made pole
