80 W split solar street light · 150–180 Wp tilting panel · LiFePO4 640–896 Wh (LS-S80)

Overview

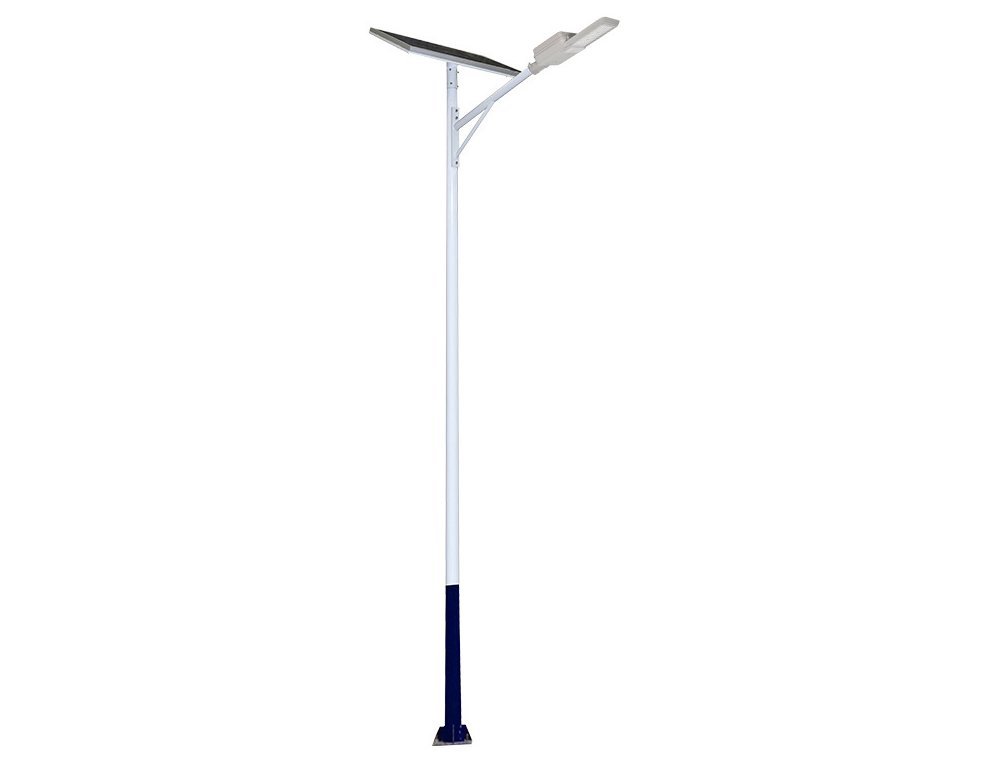

The LS-S80 80 W split solar street light kit is an off-grid stand-alone kit made of an 80 W nominal LED head (180–220 lm/W), a separate 150 to 180 Wp panel on a tilt bracket and a LiFePO4 12.8 V battery of 50 to 70 Ah (640 to 896 Wh) at the pole base, on a 6 to 7 m hot-dip galvanised pole made in Morocco. It is the kit for communal roads and main streets of residential estates in Morocco (indicative class P2–P3 or M5–M6, NM EN 13201), where the LS-A80 all-in-one reaches its December limit in the north and on the coast. Autonomy up to 12 h per night with 3 days of reserve, sized per site; price for Morocco on request (quote via WhatsApp).

How is it sized? The 150 or 180 Wp panel tilted at 32° harvests +62 to +68 % more energy in December than a flat panel of the same rating; the 50 or 70 Ah battery is chosen from the lighting class to hold and the number of consecutive overcast days on site. The luminous flux of the chosen configuration is given by its IES file, supplied with the quote. The nominal power is not the average draw: the MPPT controller applies the dimming profile and the PIR sensor raises the flux on movement.

The battery at the pole base stays cool and is replaced without a lift; head and panel are dusted separately. The pole is Moroccan-made (25 % safeguard duty on imported poles, HS 7308.90.10): LALOGO supplies the 6 or 6.8 m LS-P6 pole drawing and delivers the head, panel, LS-B bracket, battery and cabling. IP66 coastal version with marine-grade coating for Casablanca-Settat, Rabat-Salé-Kénitra and Tangier.

Features

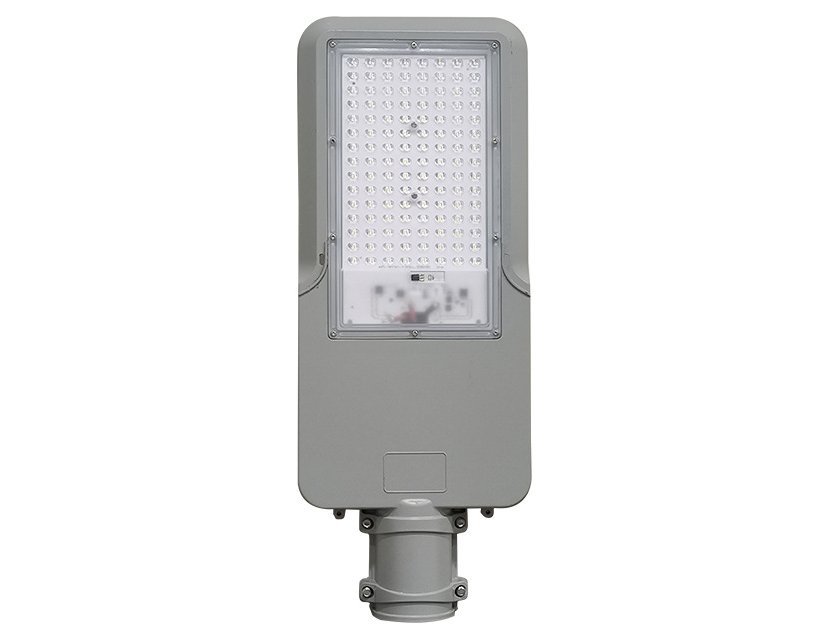

• 80 W nominal LED head, 180–220 lm/W, die-cast aluminium

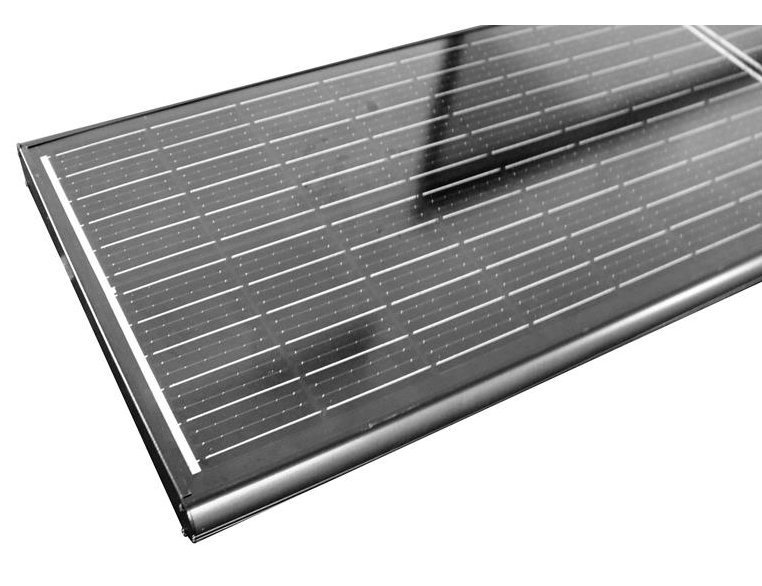

• Separate 150 or 180 Wp panel on an LS-B bracket tilting 15–45°
• LiFePO4 12.8 V 50 or 70 Ah battery (640 or 896 Wh) in a box at the pole base
• MPPT controller, PIR sensor, dusk-to-dawn sensor, programmable dimming profile
• +62 to +68 % more December energy thanks to the panel tilt (PVGIS)
• Battery kept cool and replaceable without a lift
• 6–7 m hot-dip galvanised steel pole, made in Morocco from the LS-P6 drawing
• Sized per site: Wp, Ah, height, spacing, NM EN 13201 class

Applications

• Communal roads and rural town-centre crossings
• Main streets of residential estates and residences
• Lanes of business parks and cooperatives
• Car parks of communes, bus stations and markets
• Northern and coastal sites with low December irradiation
• Hot inland sites where the battery must stay at the pole base

Autonomy in the Moroccan climate

Sized for December with a panel tilted at 32° facing south: in Casablanca the tilted plane receives 4.93 kWh/m²/day versus 2.99 flat; in Rabat 4.65; in Tangier 4.32 (PVGIS-SARAH2 2005-2020, JRC). With a system efficiency of 0.72 (engineering assumption), a 180 Wp panel harvests 180 × 4.93 × 0.72 ≈ 639 Wh per day in Casablanca, ≈ 603 Wh in Rabat and ≈ 560 Wh in Tangier; a 150 Wp panel, ≈ 532 Wh in Casablanca. The night of 21 December lasts ≈ 14.1 h in Casablanca and Rabat, ≈ 14.3 h in Tangier (astronomical computation): an 80 W head held at 40 % flux draws about 32 W × 14.1 h ≈ 451 Wh, covered by both panel options, with the PIR raising the flux to 100 % on movement.

The battery sets the reserve: the test condition of the NM 06.8.001 draft (16 h at ≥ 40 % flux, 25 °C) corresponds, for an 80 W head, to about 80 × 0.4 × 16 ≈ 512 Wh, covered by the 50 Ah battery (640 Wh); the 70 Ah (896 Wh) adds one overcast night of reserve. Autonomy depends on irradiation (sized for December) and on the dimming profile; in June the tilted plane harvests about as much as the horizontal one (7.5 kWh/m²/day) for a 9.4 to 10.1 h night, and the profile can be raised considerably.

• Heat: battery in a box at the pole base, away from the exposed housing; according to a study published in 2024, a LiFePO4 cell loses ≈ 23 % of its cycle life at 45 °C compared with 25 °C.
• Coast: IP66 marine-coated version, stainless fixings, duplex-treated pole in C4–C5 zones (Mohammedia, Salé, Tangier); humidity ≈ 82 % all year in Casablanca.
• Dust: the tilted panel partly self-cleans in rain; cleaning advised after each chergui episode.

Compliance and tenders

The LS-S80 kit is designed to IEC 60598-1 and IEC 60598-2-3 (head), IEC 62717 (LED modules), IEC 60529 (IP) and IEC 62133-2 (LiFePO4 battery); the panel follows the IEC 61215 and IEC 61730 series. NM 06.8.001 file in progress: ≥ 130 lm/W, 0–100 % dimming with astronomical clock, 16 h autonomy test at ≥ 40 % flux, battery allowed at the pole base or in the foundation. Cم marking (law 24-09, orders 2573-14 and 2574-14) with a declaration of conformity and an Arabic manual.

The pole is Moroccan-made (25 % safeguard duty on imported poles, HS 7308.90.10); the customs classification of the luminaire is confirmed by our customs broker. For a commune or developer specification we supply the FR/EN datasheet, IES/LDT files for the NM EN 13201 study (indicative class P2–P3 or M5–M6 for a communal road or an estate main street), the LS-P6 pole drawing to NM EN 40-5 and NM ISO 1461, and the EN/NM correspondence table.

• IEC 60598-1 · IEC 60598-2-3 · IEC 62717 · IEC 60529 · IEC 62133-2 · IEC 61215 / 61730 (panel)
• NM 06.8.001: file in progress; Cم marking with declaration of conformity
• IES/LDT files, FR/EN datasheet, Arabic manual, LS-P6 pole drawing: on request
• Customs classification confirmed by our customs broker; Moroccan-made pole
